DIMENSIONING:
NOTE: if you are not familiar with the layout of SolidWorks, thenclick here to familiarize yourself with the layout
Like all CAD programs, SolidWorks allows you to dimension the parts you create. Parts do not have to be dimensioned, but when you are making accurate drawings or are interested inmating parts, dimensions are extremely important. Luckily, SolidWorks makes it very easy to add and change dimensions. This tutorial will use 'link3slide.SLDPRT' from the parts.zip archive. You can use this tutorial for any part though.
Notice you are getting a center-to-center length dimension even though the dimensioning scheme in the Slot Types group box shows the Overall Length icon button is selected. Move your mouse pointer over to the Slot Types group box in the PropertyManager, click on the Center to Center icon button, then click on the Overall Length icon button. SolidWorks Tutorials 6: How to Use Slot Sketching Tools. The straight slots and arc slots are main two type’s slot sketching tool inside the SoildWorks Sketch. Like, different rectangle/arc drawing methods, slot sketching tools contains 3 point and centerpoint drawing methods. Let see each one of them in detail. Note: This is just tutorial. Car engine all parts individual drawing with dimension 2 answers 21158 views 10 followers Is there a difference in the final model if there is a fillet on one edge and arc on other edge of a cube in the final STL file.Please note that arc and fillet are of same dimensions.
Use file->open and browse to the folder that you downloaded the file to. Select'link3slide.SLDPRT' and click open:
I think SOLIDWORKS drawings are assemblies – and it blew my mind; 2: Measure the performance of a slow drawing first. SOLIDWORKS released a handy new tool in 2016 that’s appropriately named Performance Evaluation. It already worked for parts and assemblies, but from then on it could analyze drawings as well. Did you know you can give arc length by using Smart Dimension in sketch, First you give arc radius dimension, Click on both end of the arc, One again click on arc curve to get arc length dimension.
Solidworks Drawing Dimension Slot Length Chart
You can only edit dimensions in sketch mode. To enter sketch mode you must first determine which sketch contains the dimension to change. Locate the sketch which contains the line/circle/arc you want to dimension. You can usually find the sketch under an 'extrude' in thefeature manager design tree. You will have to click the to reveal the sketch:
Right click on the sketch and select ‘edit sketch.’ You will notice that the rest of the part disappears or becomes transparent. Do not worry if some of the features of the part become transparent or disappear. They have NOT been deleted. They have simply been removed to simplify the screen and highlight the sketch you are currently working with.
You will now be in sketch mode and can use all the buttons on the right of the screen (picture rotated to save space):
If your view of the part is skewed, click the front view on the the standard view menu to rotate the sketch:
Solidworks Drawing Dimension Slot Length Mirror
Your window should now look like this:
We will nowedit the diameter of the circular hole. We will edit it because the hole already has a dimension (.80in). This is specified by the lines coming off the circle with .80 on the bottom. To edit the dimension DOUBLE-CLICK on the .80. A box labeled 'Modify' will appear.
Erase .80 and enter .50. Click the green check or press enter.
Notice the hole gets smaller:
Editing Dimensions is great if dimensions are already defined in the sketch. But what if we want to add new dimensions? We will now learn how. First make sure you are in sketch mode. Follow the directions above if you are no longer in sketch mode. Notice that when you move your cursor over the sketch that certain features turn red. Any feature that turnsred can be dimensioned. These features are:
-a circle radius or diameter
-a line
-an arc
-a fillet/chamfer
-distance between two points
-distance between a line and a point

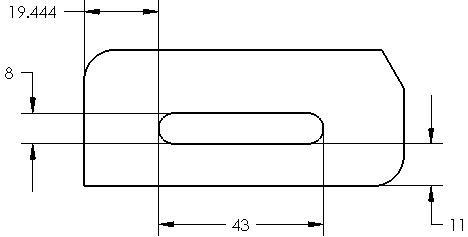

To add a dimension click the dimension button found on the sketch tools toolbar on the right of the screen. You will notice the cursor changes towhen you do this. We will now dimension the length of the slot. Move your cursor over the slot until either the top or bottom line turns red.The cursor will change again to signifying a line that can be dimensioned:
When it does, click with the left mouse button and drag up or down to select the placement of the leader and dimension. The placement is not critical. It is usually best to place it out of the way to keep the sketch neat and readable. When you are satisfied with the placement left-click again:
You can now edit the dimension exactly like above. Enter 3.00 and click the green arrow or press enter:
When you are done dimensioning, make sure to exit sketch mode by clicking the arrow in the top right corner of the screen:
You are now ready to try Dimensioning Exercise 1
Dimensioning Exercise 1:
Try adding the following dimensions for more practice:
Troubleshooting:
● If you notice that the dimension tool is not working or working erratically, you can always hit escape to unselect the dimension tool and start over again. This usually fixes any problem.
Solidworks Drawing Dimension Slot Length Calculator
● If you mess up badly, you can always edit->undo. Likewise, if you want to go back to a certain point, you can use the undo list to see your undo options
